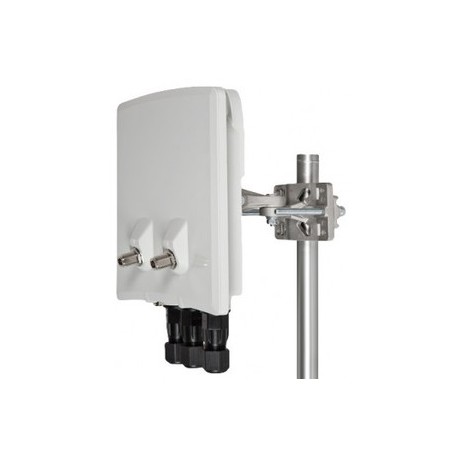

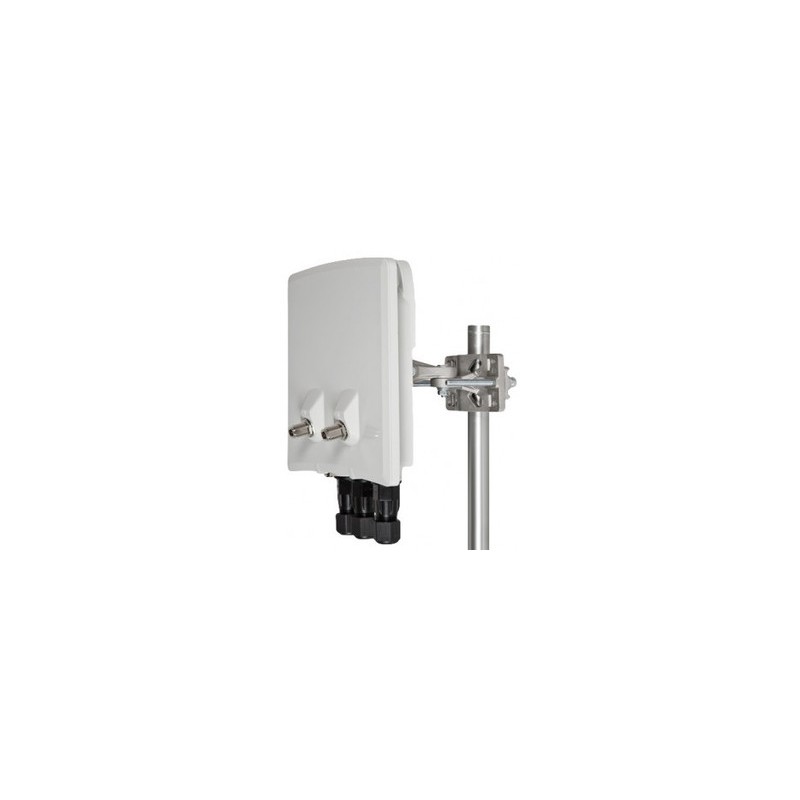

INFINET Wireless Um/54.500.2x5 00

Caratteristiche tecniche:

Throughput Up to 480 Mbps, net aggregate

Latency 0.5-3 ms one-way, typical (depending on air frame period)

RADIO TECHNOLOGY

Modulation Cyclic single carrier

Modulation schemes Ten modulation/coding schemes from QPSK to QAM256, as well as QAM1024

Frequency bands

4.9-6.0 GHz

Channel widths 10, 20 and 40 MHz

Output power: Up to 27 dBm (average, per Tx chain) @ QPSK to QAM256, Up to 24 dBm @ QAM1024

Uplink/downlink ratio Configurable, from 50:50 to 99:1 in any direction

Receiver sensitivity -94 dBm @ 10 MHz, QPSK

Duplex Scheme TDD, Hybrid-FDD

Antenna: detached, 2 x RF
